TZM Molybdenum Alloy Tube | M026

Description

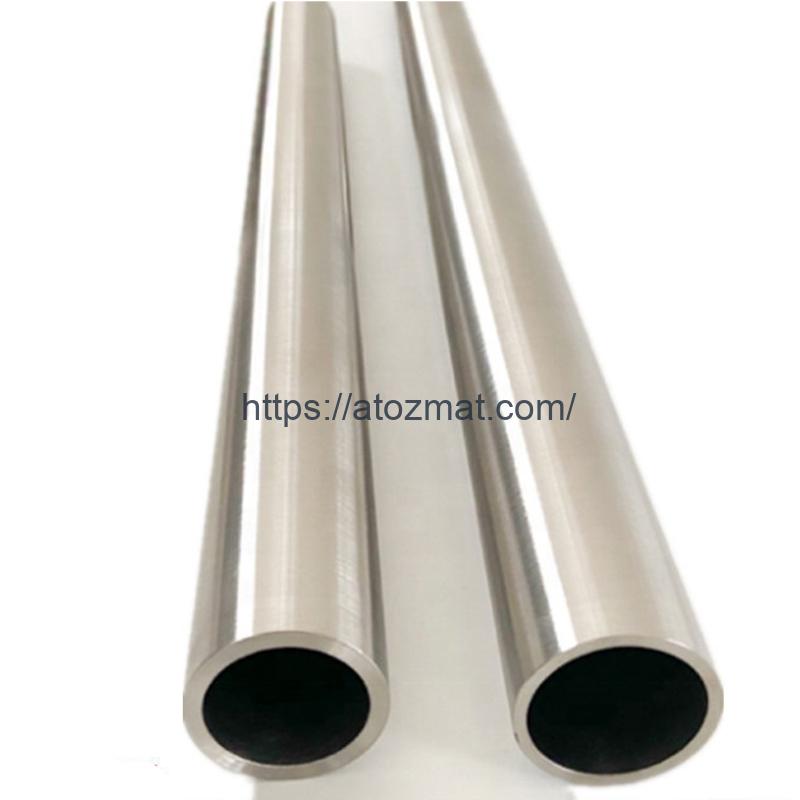

TZM Molybdenum Alloy Tube Description:
Shanghai Fenglin E-Tech Co., Ltd. is a global supplier of TZM Molybdenum Alloy Tube and we can provide customized molybdenum products.

TZM is an acronym for titanium-zirconium-molybdenum, and is typically manufactured by powder metallurgy or arc-casting processes. TZM Alloy is a molybdenum alloy (0.4-0.54% Ti, 0.06-0.12 %Zr, 0.01-0.04% C, balance Mo). It is of great utility due to its high strength and high temperature applications, especially above 2000 ℉.
TZM Molybdenum (TZM Alloy) has a higher recrystallization temperature, higher strength, hardness at room and elevated temperatures than pure Molybdenum. TZM Alloy offers twice the strength of pure moly at temperatures over 1300 °C. The recrystallization temperature of TZM Alloy is approximately 250 °C higher than moly and it offers better weld ability. For high strength applications such as rocket nozzles, furnace structural components, and forging dies, it can be well worth the cost differential.

TZM Molybdenum Alloy Tube Applications:

• Used in components of electron tube, heaters of high-temperature furnaces, and thermocouple retainers.

TZM Molybdenum Alloy Tube Specification:
Material: TZM Alloy (0.4-0.54% Ti, 0.06-0.12 %Zr, 0.01-0.04% C, balance Mo)
(typically 0.5% Ti, 0.08 %Zr, 0.02% C, balance Mo)
Standard: ASTM B386 type 364 / B387 type 364
Dimensions: OD: 20-500mm; L: 50-2000mm
Process: Sintering, gun drilling
Surface: Finish Turning, Grinding

TZM Molybdenum Properties:
