Abstract
Zirconium 702 (Zr702) represents a premier material choice for aggressive chemical process applications due to its exceptional corrosion resistance in highly acidic and alkaline environments. This article comprehensively examines the performance characteristics, fabrication methodologies, and design limitations of Zr702 tubing in corrosive process systems. The analysis covers material properties, corrosion resistance mechanisms, welding and fabrication techniques, and operational constraints based on current industry standards and research findings.
Table of Contents
- What is Zr702: Introduction to Zr702 Zirconium Alloy
- Corrosion Performance in Process Environments
- Fabrication and Welding Considerations
- Mechanical Properties and Design Limits
- Applications in Process Industries
- Design Guidelines and Best Practices
- Limitations and Special Considerations
- Future Developments and Research Directions
- Conclusion
- References
1. What is Zr702: Introduction to Zr702 Zirconium Alloy
Zr702 is a commercially pure zirconium alloy containing 99.2-99.9% zirconium plus hafnium, with typical mechanical properties including a minimum ultimate strength of 55 ksi, yield strength of 30 ksi, and 16% elongation [1]. The alloy’s superior corrosion resistance stems from the formation of a dense, adherent oxide film that protects the underlying metal from aggressive chemical attack. This passive film formation occurs spontaneously in air at room temperature and provides protection superior to stainless steel, titanium, and nickel alloys in many corrosive environments [2].
Key Material Properties: The chemical activity of zirconium increases with temperature, yet its excellent corrosion resistance persists due to the stability of the surface oxide film [3]. This combination of properties has made Zr702 indispensable in industries ranging from nuclear energy to petrochemical processing, where it serves in critical applications including pressure vessels, heat exchangers, piping systems, agitators, valves, pumps, and various process equipment components [2].
2. Corrosion Performance in Process Environments
2.1 Acid Resistance
Zr702 exhibits outstanding resistance to a wide range of corrosive media. In sulfuric acid applications, zirconium demonstrates superior performance compared to many other metals, particularly at elevated temperatures. Research has shown that zirconium maintains excellent corrosion resistance in sulfuric acid environments that would rapidly degrade conventional materials [4].
In hydrochloric acid solutions, zirconium shows remarkable stability, though its performance can be affected by the presence of oxidizing agents. Studies indicate that zirconium’s corrosion resistance in hydrochloric acid depends on concentration, temperature, and the presence of other chemical species [5]. The material performs exceptionally well in reducing hydrochloric acid environments but may require electrochemical protection in oxidizing conditions [5].
⚠️ Critical Design Consideration: Nitric acid presents a more complex scenario for zirconium. While generally resistant, zirconium can experience stress corrosion cracking in concentrated nitric acid at elevated temperatures. Factors affecting stress corrosion cracking susceptibility include acid concentration, temperature, and applied stress levels [6]. Proper design and material selection are crucial for nitric acid service.
2.2 Chloride Environments
Localized corrosion of zirconium in acidic chloride solutions has been extensively studied. Evaluation of zirconium’s performance in chloride-containing environments reveals that while generally resistant, specific conditions can lead to localized attack. The presence of certain ions and the electrochemical conditions significantly influence corrosion behavior [7].
2.3 Organic Acids and Alkalis
Zr702 finds extensive application in organic acid production, particularly in acetic acid manufacturing where it outperforms many alternative materials. The alloy also demonstrates excellent resistance to alkaline solutions, making it suitable for caustic service in various chemical processes [4].
3. Fabrication and Welding Considerations
3.1 Welding Techniques and Challenges
The fabrication of Zr702 components requires specialized techniques due to the material’s high chemical reactivity at elevated temperatures. Tungsten inert gas (TIG) welding with high-purity argon shielding is the most common method for joining zirconium components. Research has demonstrated that obtaining high-quality welds requires strict cleaning procedures before welding, specialized tooling for protection by high-purity argon, selection of reasonable TIG welding parameters, and appropriate groove preparation [2].
📋 Note: Electron beam welding (EBW) represents an advanced joining method for Zr702. The high vacuum environment of EBW protects the material from contamination by nitrogen, hydrogen, and oxygen, while the low heat input and high energy density characteristics prevent grain coarsening during welding [1]. Studies of Zr702 joints welded by EBW show that the fusion zone and heat-affected zone exhibit better corrosion resistance than the base metal, with microstructure analysis revealing α-Zr and β-Zr phases in the joint regions [1].
3.2 Microstructural Considerations
The microstructure of welded Zr702 joints typically includes several distinct zones: base material, normalizing zone, overheated area, fusion zone, and weld zone. Hardness distribution across the weld joint typically follows a W-shaped pattern, with the hardest point at the center and the softest points in the normalizing zone [3]. Annealing treatments at appropriate temperatures (typically around 600°C) can improve ductility and soften the weld joint, particularly at the center [3].
3.3 Grain Growth and Annealing
A critical consideration in Zr702 fabrication is the potential for abnormal (bimodal) grain growth during annealing. Research has identified a critical temperature of approximately 691°C (1275°F) above which bimodal grain growth occurs in cold-worked sheets after annealing [8]. This abnormal grain growth represents a potential weakness and may introduce anisotropy in mechanical properties. The phenomenon occurs specifically after bending operations rather than rolling, necessitating careful control of annealing parameters for formed components [8].
4. Mechanical Properties and Design Limits
4.1 Temperature Limitations
Zr702 maintains its mechanical integrity across a wide temperature range, but design considerations must account for temperature-dependent behavior. The alloy’s strength decreases with increasing temperature, requiring appropriate derating for high-temperature applications. Maximum recommended operating temperatures typically range from 300-350°C for continuous service, though short-term exposure to higher temperatures may be acceptable with proper engineering evaluation.
4.2 Pressure Design Considerations
For pressure vessel and piping applications, Zr702 tubing must be designed according to applicable codes and standards such as ASME B31.3 for process piping. The material’s allowable stresses decrease with temperature, necessitating careful calculation of wall thickness requirements. Design pressure ratings must consider not only the mechanical strength but also the potential for corrosion-related wall thinning over the equipment’s service life.
4.3 Fatigue and Creep Considerations
In cyclic service applications, fatigue resistance becomes a critical design factor. Zr702 exhibits good fatigue properties, but design must account for potential stress concentrations at welds, fittings, and support points. Creep behavior becomes significant at temperatures above approximately 300°C, requiring consideration in high-temperature applications.
5. Applications in Process Industries
5.1 Chemical Processing
Zr702 tubing finds extensive application in chemical process industries for handling aggressive media. The material is particularly valuable in production units for:
- Acetic acid, nitric acid, hydrochloric acid
- Urea, hydrogen peroxide
- Metaformaldehyde, chlorinated polyethylene [2]
Its resistance to both acidic and alkaline environments makes it suitable for multi-purpose process equipment.
5.2 Heat Exchanger Applications
In heat exchanger service, Zr702 tubes provide reliable performance in corrosive heat transfer applications. The material’s thermal conductivity (approximately 0.167 W/cm·°C) and corrosion resistance make it suitable for shell-and-tube heat exchangers handling aggressive process streams [1]. Proper tube-to-tubesheet welding is essential for leak-free performance in these critical applications.
5.3 Nuclear Industry Applications
While beyond the scope of typical process industry applications, it’s worth noting that zirconium alloys have been used as cladding for uranium fuel elements since the 1950s and continue to serve in water-cooled nuclear reactors [8]. The experience gained in nuclear applications has informed many of the fabrication and quality control practices used in chemical process equipment manufacturing.
6. Design Guidelines and Best Practices
6.1 Material Selection Criteria
Selection of Zr702 for process applications should consider:
- Chemical environment (acid type, concentration, temperature)
- Presence of oxidizing or reducing agents
- Chloride ion concentration
- Operating temperature and pressure ranges
- Cyclic loading conditions
- Compatibility with other materials in the system
6.2 Fabrication Quality Control
Successful implementation of Zr702 tubing requires rigorous quality control:
- Strict cleaning procedures to remove contaminants before welding
- High-purity argon shielding during welding operations
- Proper heat input control to minimize grain growth
- Post-weld heat treatment when required by design
- Non-destructive examination of critical welds
6.3 Installation and Maintenance Considerations
Proper installation and maintenance practices include:
- Avoidance of galvanic coupling with less noble metals
- Protection from mechanical damage during installation
- Regular inspection for signs of corrosion or erosion
- Proper cleaning procedures to maintain passive film integrity
- Monitoring for potential hydrogen pickup in certain service conditions
7. Limitations and Special Considerations
🚨 Caution – Hydrogen Embrittlement: Zirconium can absorb hydrogen under certain conditions, potentially leading to embrittlement. This is particularly relevant in reducing acid environments or cathodic protection scenarios. Design must consider hydrogen pickup rates and implement measures to minimize this risk.
🚨 Caution – Fluoride Ion Attack: Zr702 is susceptible to attack by fluoride ions, which can disrupt the protective oxide film. Applications involving hydrofluoric acid or fluoride-containing compounds require alternative materials or special design considerations.
7.3 Cost Considerations
While offering superior corrosion resistance, Zr702 represents a premium material choice with higher initial cost compared to conventional materials like stainless steel. Life-cycle cost analysis typically justifies this investment through extended service life and reduced maintenance requirements in aggressive environments.
8. Future Developments and Research Directions
Recent research continues to advance zirconium alloy technology. Studies focus on surface modification techniques, alloy development for improved properties, and better understanding of corrosion mechanisms [9]. The development of new welding technologies and improved fabrication methods continues to expand the application range for Zr702 in process industries.
9. Conclusion
Summary: Zr702 zirconium tubing represents a high-performance solution for corrosive process applications where conventional materials fail. Its exceptional corrosion resistance in acidic and alkaline environments, combined with good mechanical properties and fabricability, makes it indispensable for demanding chemical process equipment.
Successful implementation requires careful attention to fabrication techniques, proper design for service conditions, and adherence to industry best practices. As process industries continue to handle increasingly aggressive media at higher temperatures and pressures, Zr702 will remain a critical material for reliable, long-term equipment performance.

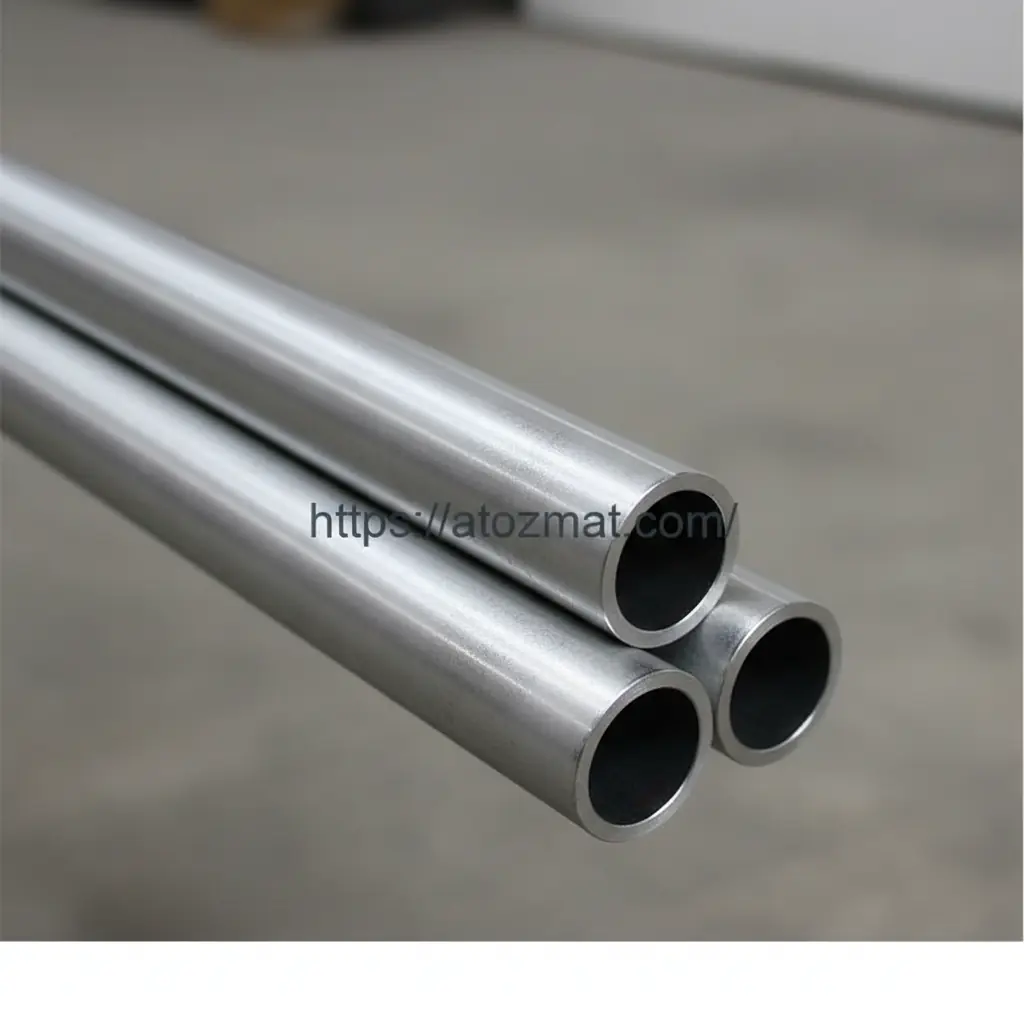

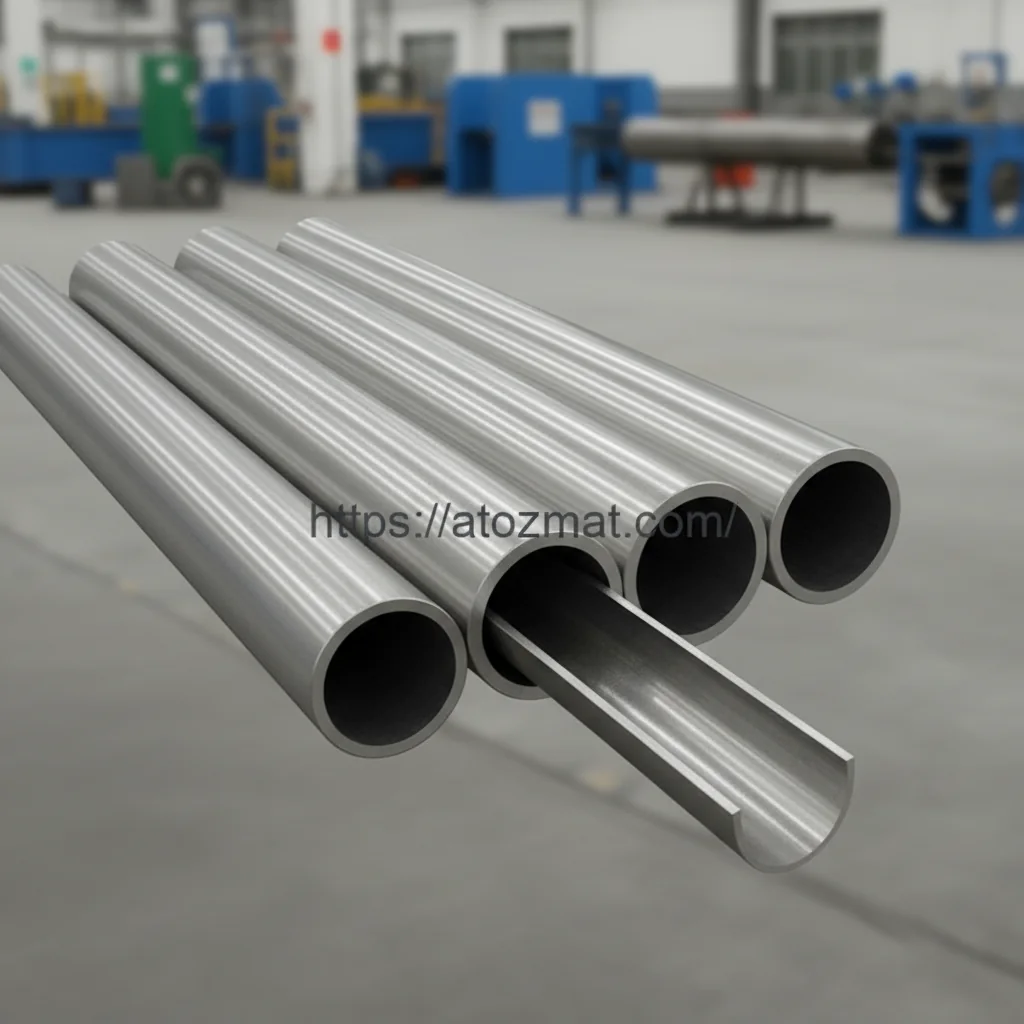

Product reference: Zirconium Tube (Zr702 Tube) | Z006 at AtoZMat.
10. References
[1] Zhang, B.; Li, X.; Wang, T.; Wang, X. Microstructure and Corrosion Behavior of Zr-702 Joined by Electron Beam Welding. Vacuum 2015, 121, 159–165. DOI: 10.1016/j.vacuum.2015.08.005
[2] Zhou, W. C.; Luo, G. Q.; Zhou, W.; Xiao, S. H. Research on the Welding Technology Experiment with Zirconium 702. Advanced Materials Research 2014, 912–914, 314–317. DOI: 10.4028/www.scientific.net/amr.912-914.314
[3] Hu, X. D.; Zhang, S.; Zhang, Y.; Li, Y. J. Study on the Microstructure and the Mechanical Properties of Zr R60702. Advanced Materials Research 2012, 510, 679–682. DOI: 10.4028/www.scientific.net/amr.510.679
[4] Gegner, P. J.; Wilson, W. L. Corrosion Resistance of Titanium and Zirconium In Chemical Plant Exposures. Corrosion 1959, 15 (7), 19–28. DOI: 10.5006/0010-9312-15.7.19
[5] Brady, W. R.; Braun, H. Über Die Anwendung von Zirkonium Im Chemischen Apparatebau. Materials and Corrosion 1969, 20 (1), 30–35. DOI: 10.1002/maco.19690200109
[6] Qin, W. Improvement and Application of Zirconium Alloys. Metals 2018, 8 (10), 794. DOI: 10.3390/met8100794
[7] Fahey, J.; Holmes, D.; Yau, T.-L. Evaluation of Localized Corrosion of Zirconium in Acidic Chloride Solutions. Corrosion 1997, 53 (1), 54–61. DOI: 10.5006/1.3280434
[8] Sarrail, B.; Schrupp, C.; Babakhanyan, S.; Muscare, K.; Foyos, J.; Ogren, J.; Sparkowich, S.; Sutherlin, R.; Hilty, J.; Clark, R., Jr.; Es-Said, O. S. Annealing and Anomalous (Bimodal) Grain Growth of Zr 702. Engineering Failure Analysis 2007, 14 (4), 652–655. DOI: 10.1016/j.engfailanal.2006.02.017
